1pcs Nema23 Planet Reducer 57 Stepper Moto Planetary Gearbox Gear for Nema 24 Brushless Motor 60 Servo 3:1 5:1 10:1~216/1(14mm for 60 Servo,Ratio 60-1)

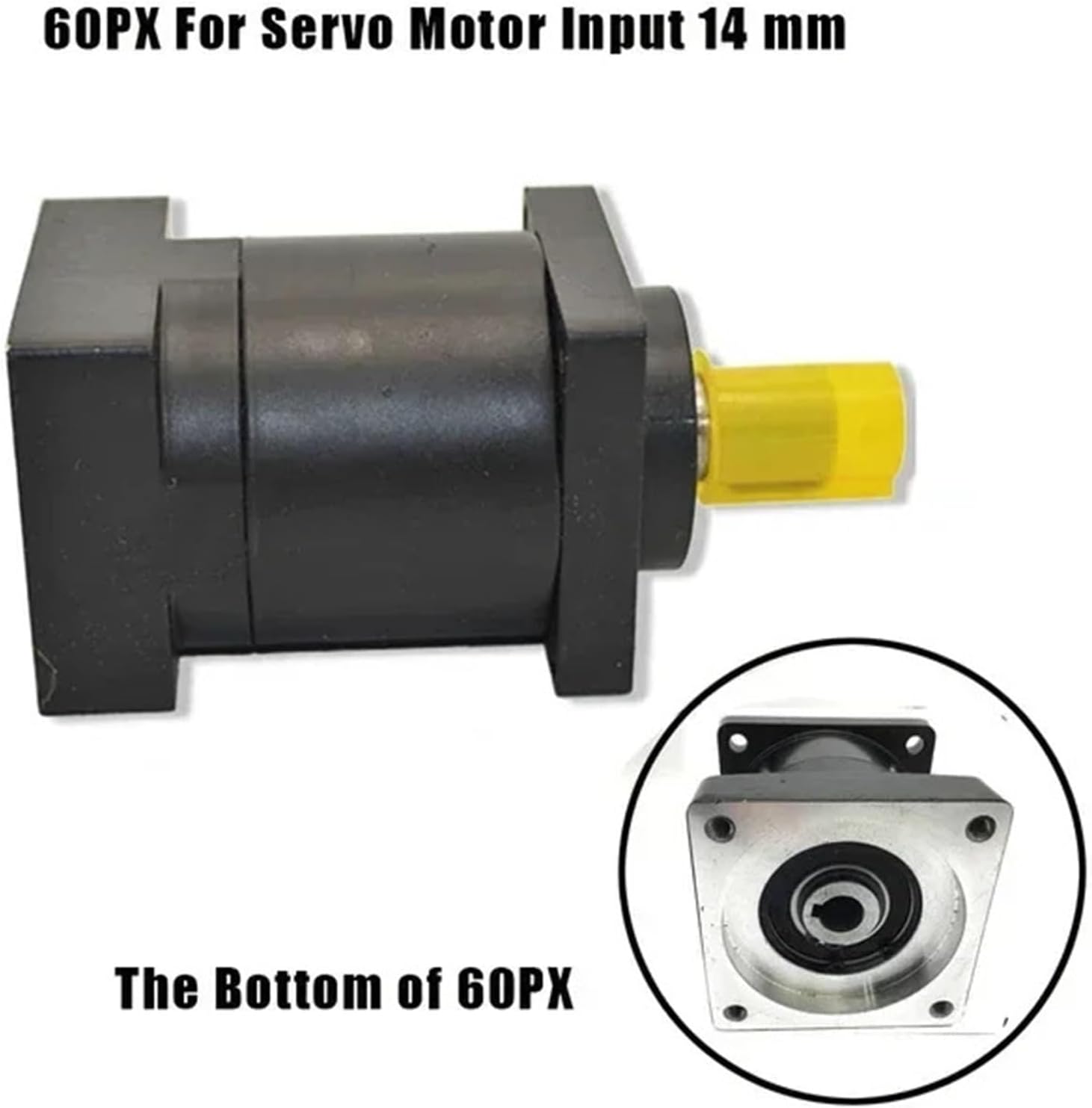

speed reducerReducersPlanet Reducer Nema23 Ratio 3:1-60:1 PX57 PX60 Planetary Gearbox Gear for Nema 24 Stepper Motor Servo Motor Brushless Reducer 1x Planetary Gearbox1x Key4x Install screws Technical Parameters 57PX Nema23 Reducer Stage Lever 1 Lever 2 Lever 3 Reduction ratio 3.25/4/5/6/10 16/24/36/40/60 64/96/144/216 Input (MM) 6.35/8 6.35/8 6.35/ 8 Output shaft (MM) 14 14 14 Keyway (MM) 5 5 5 Body length (MM) 76 90 104 Rated load (N.M) 15 30 40 Maximum load (N.M) 25 40 50 Full load efficiency (%) 95 90 85 Backlash Precision (arcmin) 15 30 50 Rated input speed (RPM) 3000 3000 3000 Protection level (IP) 65 65 65 Noise (dB) 60 60 60 Average service life (H) 20000 20000 20000 Gear material 20Cr Carbon steel 20Cr Carbon steel 20Cr Carbon steel Technical Parameters 60PX Nema24 Reducer Stage Lever 1 Lever 2 Lever 3 Reduction ratio 3.25/4/5/6/10 16/24/36/40/60 64/96/144/216 Input (MM) 8/14 8/14 8/14 Output shaft (MM) 14 14 14 Keyway (MM) 5 5 5 Body length (MM) 74 88 102 Rated load (N.M) 15 30 40 Maximum load (N.M) 25 40 50 Full load efficiency (%) 95 90 85 Backlash Precision (arcmin) 15 30 50 Rated input speed (RPM) 3000 3000 3000 Protection level (IP) 65 65 65 Noise (dB) 60 60 60 Average service life (H) 20000 20000 20000 Gear material 20Cr Carbon steel 20Cr Carbon steel 20Cr Carbon steel

• speed reducer
• Reducers
• 1pcs Nema23 Planet Reducer 57 Stepper Moto Planetary Gearbox Gear for Nema 24 Brushless Motor 60 Servo 3:1 5:1 10:1~216/1 Computerized Numerical Control Parts
