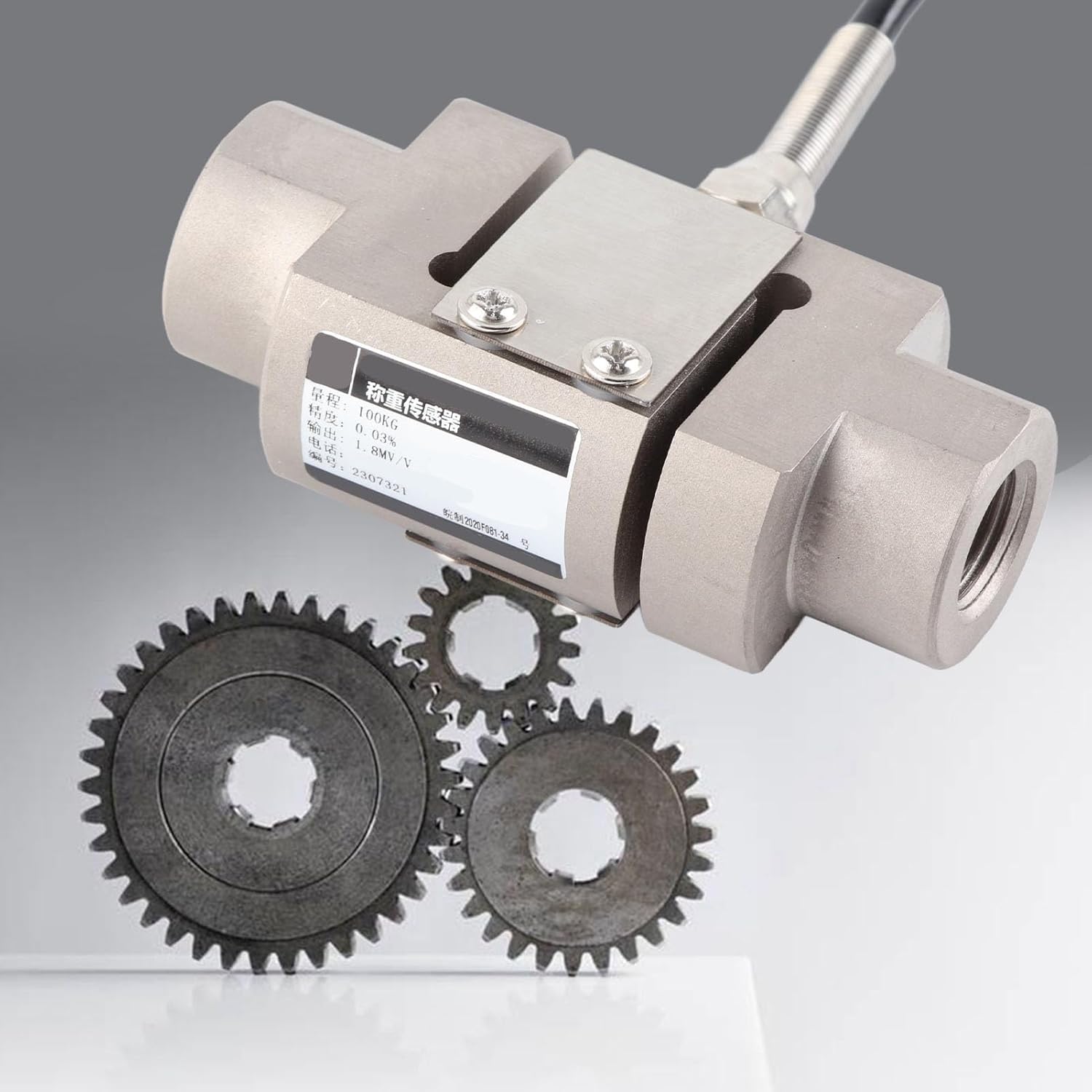

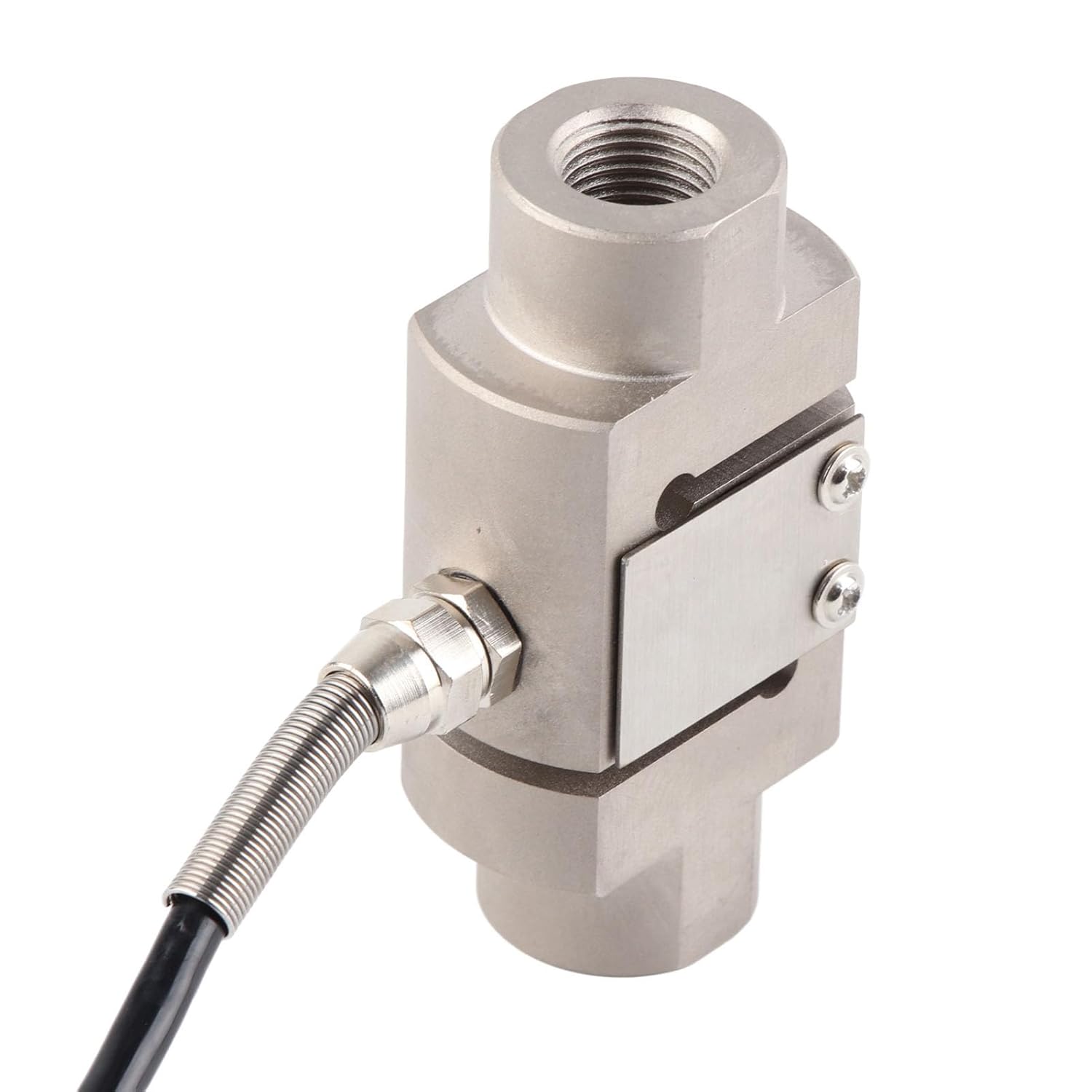

Eujgoov Load Cell Weighing Sensor S Type Scale Beam Portable Electronic Kitchen Amplifier Module Strong Fatigue

Specification: Features: 1. Alloy steel material, strong resistance to mechanical fatigue, good hardenability, plating on the surface to resist . 2. Suitable for material testing machines, hopper scales, hook scales, packaging scales, belt scales, insertion force testers and other tensile testing instruments as well as automation equipment field and testing field. 3. Compact structure, high comprehensive , long-term stability. 4. Features high , high sensitivity, high stability, and durable in use. 5. Simple and quick installation. Specification: Condition: Brand New Item Type: Load Cell Range: 0~100kg Output sensitivity: 2.0±10%mV/V Zero output: ±1% F.S Nonlinear: 0.05% F.S Lag: 0.05% F.S Repeatability: 0.03% F.S Creep (30 minutes): 0.05% F.S Temperature sensitivity drift: 0.05% F.S/10°C Zero temperature drift: 0.05% F.S/10°C Material: Alloy Steel Impedance: 350Ω Insulation resistance: ≥5000MΩ/100VDC Use voltage: 5-15V Operating temperature range: -20~80°C Safe overload: 150% Extreme overload: 200% Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white Package List: 1 * Load Cell

• This Load Cell Sensor is constructed with alloy steel material, providing excellent resistance to mechanical fatigue, superior hardenability, and resistance for long-term use.
• Suitable for various applications such as material testing machines, scales, packaging scales, and automation equipment, making it versatile for different testing scenarios.
• The Load Cell Scale Sensor boasts exceptional , sensitivity, and stability, ensuring reliable and accurate weight measurements in various environments.
• The S-type Load Cell Sensor features a compact structure that offers stability, high comprehensive , and long-term reliability in weight measuring tasks.
• The Load Cell Sensor provides a simple and quick installation process, allowing users to set it up effortlessly and start using it promptly for their weighing needs.
