Rotary Table (3" Tilting 4 Slots (80 mm))

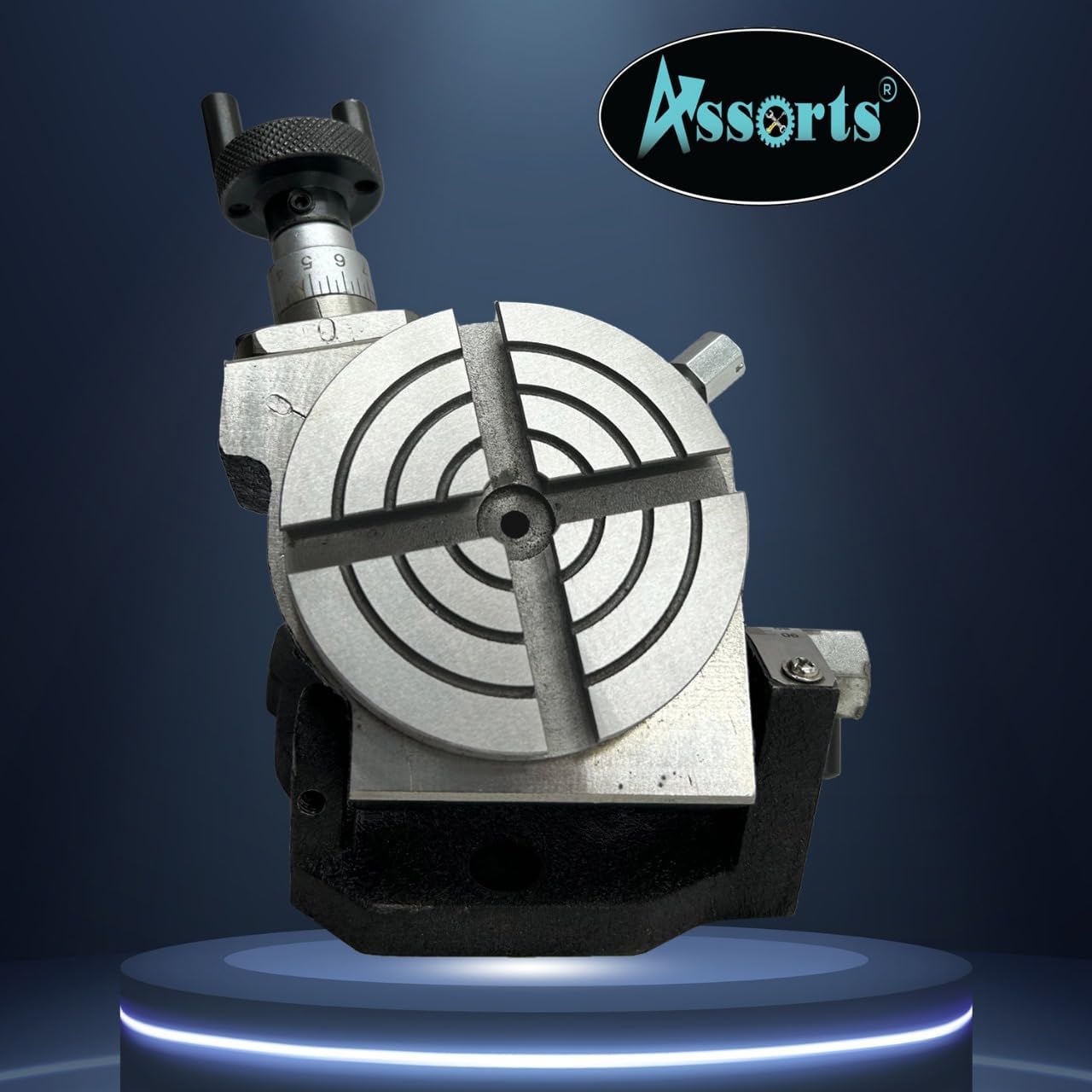

Made out of high grain casting, this precision quality low profile rotary table diameter is 80 mm (3"Inches ) and is most popular light weight tilting rotary table for small and light duty milling operations. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero. Designed to tilt between 0- 90 Degrees & can be locked at any working angle position. Total Height when laid flat is 2-7/16" ( 62 mm ). Center Height in vertical position: 2-17/32" (61.5 mm approx). Can be clamped both Horizontally and Vertically. Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx. Weight of the Rotary Table : 2.700 Kgs. It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc. We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.

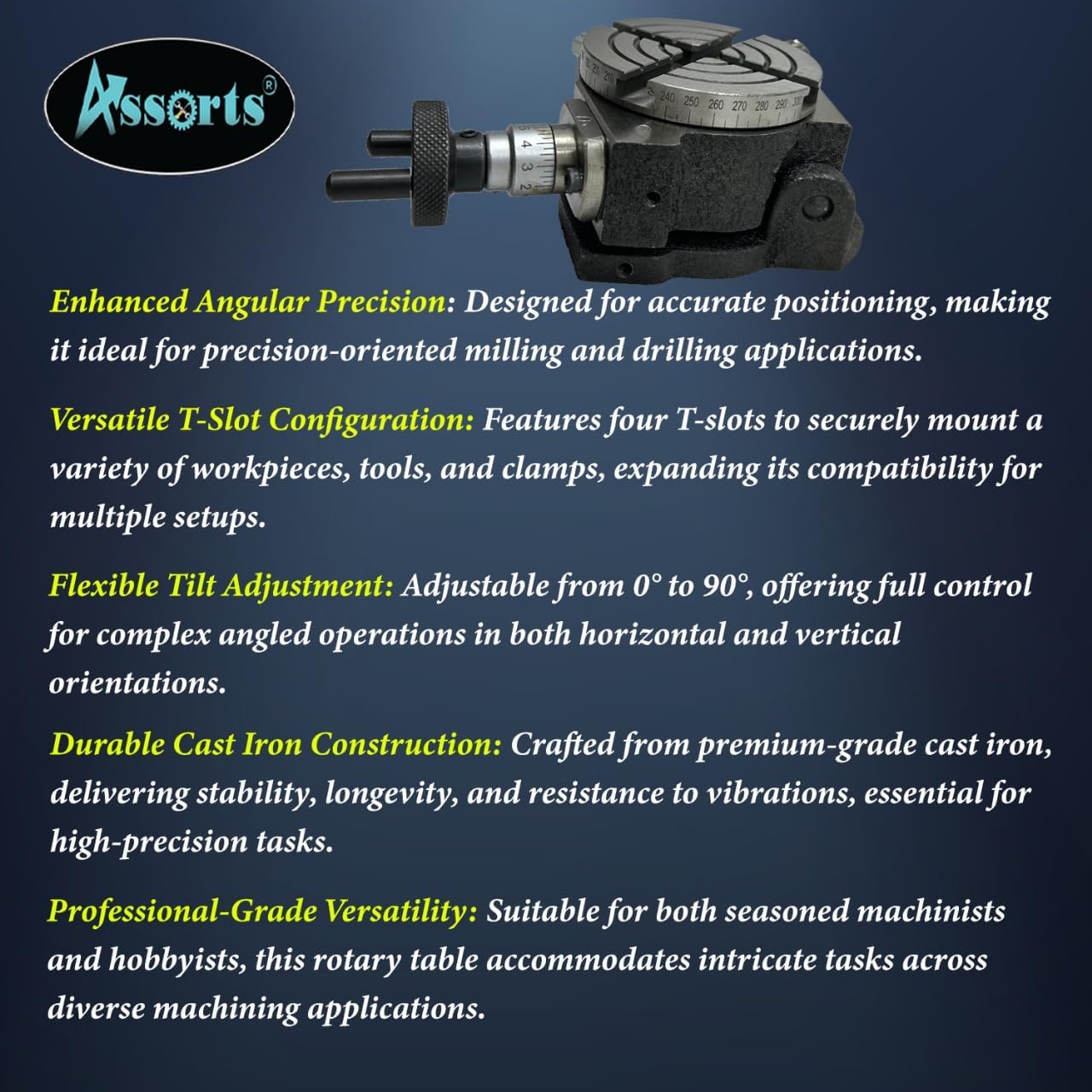

• Made out of high grain casting, this precision quality low profile rotary table diameter is 80 mm (3"Inches ) and is most popular light weight tilting rotary table for small and light duty milling operations.
• Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Hand wheel is graduated in divisions of 10 min & can be set to zero.
• Can be clamped vertically and horizontally both ways.
• Designed to tilt between 0- 90 Degrees & can be locked at any working angle position. Total Height when laid flat is 2-7/16" ( 62 mm ). Center Height in vertical position: 2-17/32" (61.5 mm approx). Can be clamped both Horizontally and Vertically.
• Base Dimensions : 100 x 105 mm with 2 x Drills (8 mm diameter) at a PCD of 82 mm approx. Weight of the Rotary Table : 2.700 Kgs.
• It is mainly used to cut gear teeth accurately and equal spacing of the teeth of the gear. Also used for milling gears, splines, squares, cutting of flutes in reamers, drills and milling cutters, racks, grinders, etc.
• We also offer various accessories like Chucks, Back plates, Clamp kits, Collet Adaptors and Tailstock to suit these rotary table functioning. Pls check our other listings if you need anything from this category.
